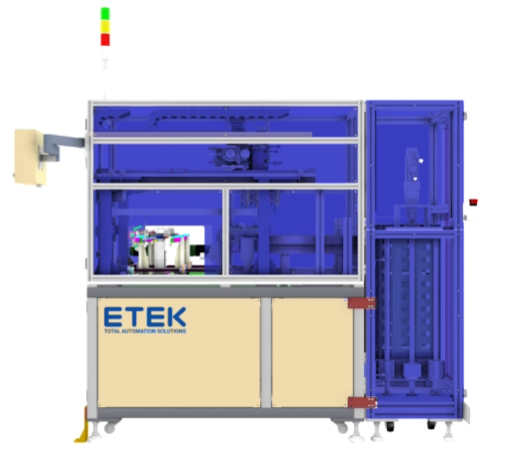

Automatic Insertion Machine (PCBA) is an automated system designed to feed, position, and insert electronic components onto PCB/PWB boards according to pre-programmed locations. The system utilizes a transfer mechanism, vacuum suction tools, and conveyor systems to ensure fast, accurate, and stable operations.
The equipment is suitable for electronic manufacturing lines requiring high precision, including electronic components, household appliances, control boards, and 3C products (Computer, Communication, and Consumer Electronics).
Implementing an automatic component insertion machine provides numerous benefits for electronics manufacturers:
High Assembly Accuracy. The system utilizes an XYZ transfer unit combined with vacuum suction tools to position components with minimal deviation, ensuring consistent PCB quality.
Automated Production Process. The machine operates automatically from tray feeding and component picking to transferring products onto the insertion conveyor, reducing manual operations and improving production efficiency.
Reduced Labor Requirements. The system minimizes the number of operators required for component assembly while reducing errors caused by manual handling.
Stable Operation and High Productivity. The equipment is capable of continuous operation with a fast cycle time, meeting high-volume production demands in the electronics industry.
Easy Integration into Production Lines. The machine can be integrated with conveyor systems, robots, and SMT/PCB production lines to create a fully automated manufacturing system.
The XYZ transfer system uses vacuum suction tools to pick and position components with high precision. Operating speeds reach 400–500 mm/s, improving processing efficiency while maintaining stable performance.
Component tray feeding unit. The tray feeding unit utilizes an automatic lifting mechanism to position component trays accurately for operation. This design enables continuous material feeding and minimizes downtime during production.
The PWB conveyor features adjustable width settings to accommodate various PCB models. The conveyor system provides stable transportation at speeds of 300–400 mm/s.
The system operates automatically through the following sequence:
