| DESCRIPTION | Application | Packaging, pallerizing |
| Professions | CPG, F&B, Metal, Auto, Construction.. | |
| PRODUCTS | Description | Large & heavy products : tiles, plasterboard… |
| Dimensions (max) (mm) | 600 x 1200 x 100* | |
| Weight (max) (kg) | 20 |
Function
Pick, place, stack and transport (goods) on a pallet.
Benefit
| SPECIFICATIONS | Rated voltage (V) | 220 |
| Capacity (kW) |
|
|
| Pressure (MPa) | 0,4 – 0,6 | |
| Overall Width (mm) (conveyor) | 1400 ( 1200, 1000, 800,600 ) * | |
| Max speed (m/s) (conveyer) | 1.6 * | |
| Cycle time (s) (one box) | 10 |
* Optionals
|

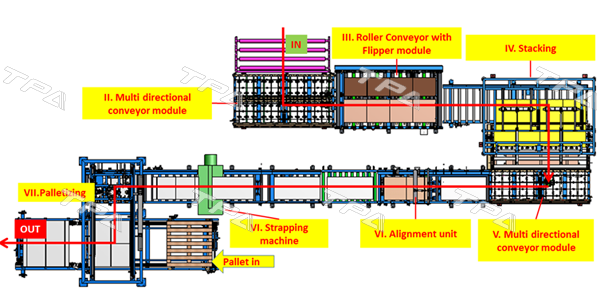

PROCESS |
EQUIPMENT |
| Roller conveyor, chain conveyor | |
| Flipping | Roller conveyor add flipper |

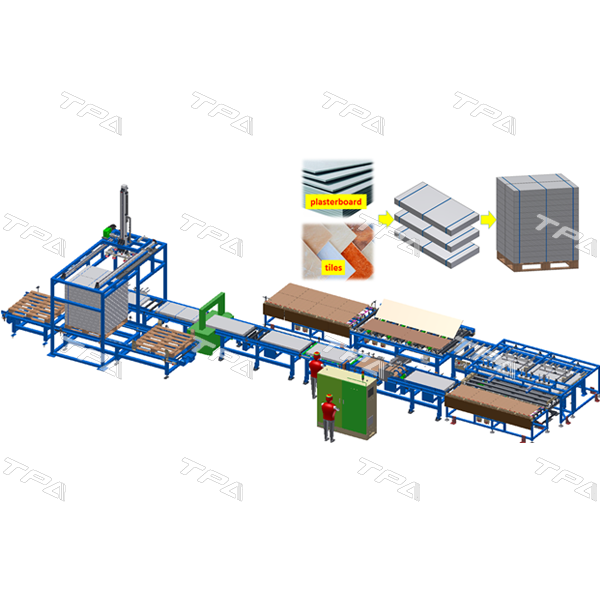

| Stacking | Mechanical design. |
| Alignment | Mechanical design . |
| Packaing | Strapping machine. |
| Palletizing | Mechanical design : motor, rack and pinions, vacuum. |
